BBO Pockels Cell With Speical Aperture

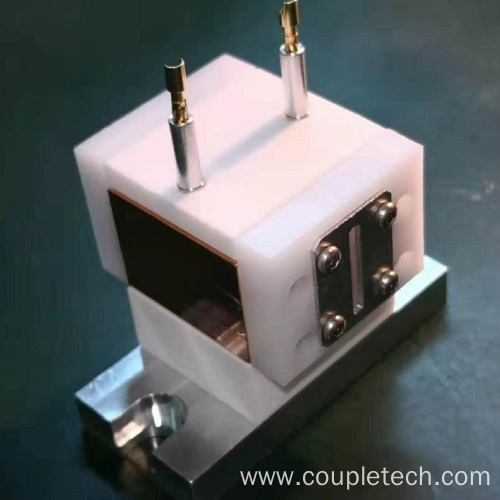

  • BBO Pockels Cell With Speical ApertureBBO Pockels Cell With Speical Aperture

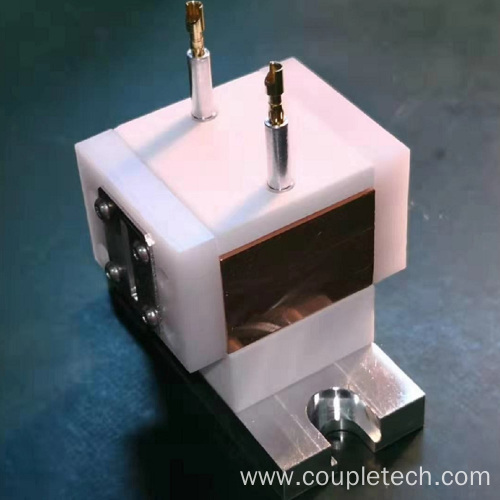

  • BBO Pockels Cell With Speical ApertureBBO Pockels Cell With Speical Aperture

BBO Pockels Cell With Speical Aperture

Our BBO Pockels Cell With Speical Aperture products are popular in the market. BBO nonlinear crystal`s transparency in the range is from 190 to 3300nm. It has good mechanical properties and is a suitable material for high-power ultraviolet Polarization Optics. BBO Pockels Cell shutter using fast switching of polarization to block and transmit light. Coupletech can provide different sizes of BBO pockels cell to meet different customers.

Send Inquiry

Product Description

BBO Pockels Cell With Speical Aperture


Product Attributes


Model No.:
CPBPC-0315L
Brand:
Coupletech
Extinction Ratio:
>1000:1 (beam Diameter 2mm)
Wavefront Distortion:
λ/8 @ 632.8nm
Damage Threshold:
300MW/cm2 10ns 10Hz 1064nm
Crystal Size (W X H X L):
3 X 15 X 25mm
Pockels Cell Size:
Dia. 25.4mm X 31mm
Clear Aperture Diameter:
2.6x14.5 Mm
Quarter Wave Voltage(1064nm):
3000 V At 25℃
Transmission, %:
>98.5% @ 1064nm
Surface Quality:
20/10 After Coated 40/20
Capacitance:
9.7 PF



Supply Ability & Additional Information


Packaging:

Carton Packing
Productivity:
2000pcs
Transportation:
Air
Place of Origin:
China
Certificate: ISO9001:
2015
HS Code:
9001909090
Payment Type:
 T/T
Incoterm:
FOB,CIF,FCA,CIP
Delivery Time:
30 Days




Packaging & Delivery


Selling Units:Bag/Bags

Package Type:Carton Packing



BBO nonlinear crystal`s transparency in the range is from 190 to 3300nm. It has good mechanical properties and is a suitable material for high-power ultraviolet Polarization Optics. BBO Pockels Cell shutter using fast switching of polarization to block and transmit light. Coupletech can provide different sizes of BBO pockels cell to meet different customers.
BBO-based pockels cell are usually used to change the polarization state of light passing through it when a voltage is applied to the electrodes of electro-optic crystals. Coupletech has a comprehensive range of BBO pockels cell for applications in wavelengths from the UV to the IR, including q-switching of the laser cavity, laser cavity dumping and coupling light into and from regenerative amplifiers, and so on.
Coupletech can provide large aperture pockels cell such as model No. CPBPC-3-15L.
For systems where a long and narrow aperture is required but the most special Pockels cell must be used, the convenience of our new CPBPC-0315L is unbeatable.
Coupletech is uniquely positioned to design, fabricate, finish, and assemble into housings BBO Crystals in the sizes required for such a speical beam diameter.




Applications:
High repetition rate DPSS Q-switch
Cavity dumping
Beam chopper
Regenerative amplifiers
