Beta Barium Borate BBO Pockels Cells
  • Beta Barium Borate BBO Pockels CellsBeta Barium Borate BBO Pockels Cells

Beta Barium Borate BBO Pockels Cells

We are experts in the field of Beta Barium Borate BBO Pockels Cells. Pockels cells or EO Q-Switches are used to change the polarization state of light passing through it when a voltage is applied to the electrodes of electro-optic crystals such as BBO. Beta-Barium Borate ( β-BaB2O4, BBO ) with charactors wide transparency and phase matching ranges, large nonlinear coefficient, high damage threshold and excellent optical homogeneity and electro-optical properties provide attractive possibilities for various nonlinear optical applications and electro-optic applications.

Send Inquiry

Product Description

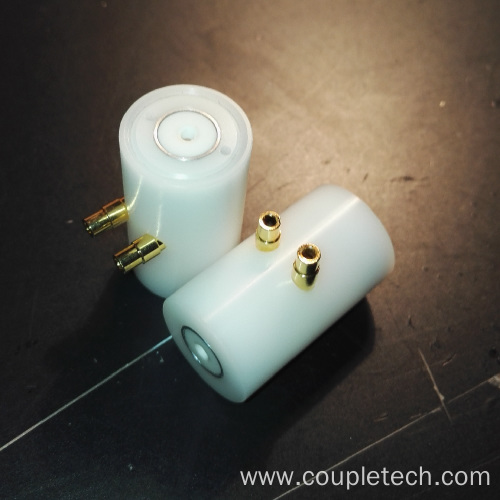

Beta Barium Borate BBO Pockels Cells


Product Attributes


Model No.:
CPBPC-025L
Brand:
Coupletech
PC Size:
Diameter 20mm X 35mm
Crystal Size:
2.5 X 2.5 X 25mm
Crystal Quatity:
Single Crystal
COATINGS:
AR/AR @ 1064nm
Windows:
No Protecting Window
Extinction Raito:
>1000:1
Capacitance:
<3pF
Quarter-wave Voltage:
2400V - 2800V
Transmission:
>98.5%



Supply Ability & Additional Information


Packaging:
Carton Packing
Productivity:
2000 pcs per year
Transportation:
Air
Place of Origin:
China
HS Code:
9013901000
Payment Type:
T/T
Incoterm:
FOB,CIF,FCA
Delivery Time:
30 Days

Packaging & Delivery


Selling Units:Bag/Bags
Package Type:Carton Packing



Pockels cells or EO Q-Switches are used to change the polarization state of light passing through it when a voltage is applied to the electrodes of electro-optic crystals such as BBO. Beta-Barium Borate ( β-BaB2O4, BBO ) with charactors wide transparency and phase matching ranges, large nonlinear coefficient, high damage threshold and excellent optical homogeneity and electro-optical properties provide attractive possibilities for various nonlinear optical applications and electro-optic applications.

BBO Pockels Cells 2.5 x 2.5 x 25mm has the aperture: 2.0mm, lower quarter-wave voltage 2400V and lower half-wave voltage 4800V, so matched driver can reach higher repetition rate 100KHz. The size of the whole pockels cells is 20.00mm diameter, and the length is 35mm, Beta BBO Pockels Cell is really small volume for compact design, besides, protected window for sealed pockels cell design is available. Please let us know your detailed application if you are interested in our Electro-optic Components, i.e. Q-switches, EO Modulation, Pulse Picker, and so on.

Coupletech can provide many different kinds of Pockels cell and Electro-optic Components, such as Beta Barium Borate Bbo Pockels Cells, KTP Pockels Cells, Double Bbo Crystal Pockels Cells, Dkdp (kd * p) Pockels Cells and LN Pockels Cells. These EO Q-Switches have different characteristics and very good quality. These Pockels cell have different functions to meet different needs of customers in various fields. We have abundant stock and preferential price. Welcome to purchase.



Looking for ideal High Power Beta BBO Crystal Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the BBO Crytal Based Pockels Cell are quality guaranteed. We are China Origin Factory of High Repetitation Rate BBO Q Switch. If you have any question, please feel free to contact us.
