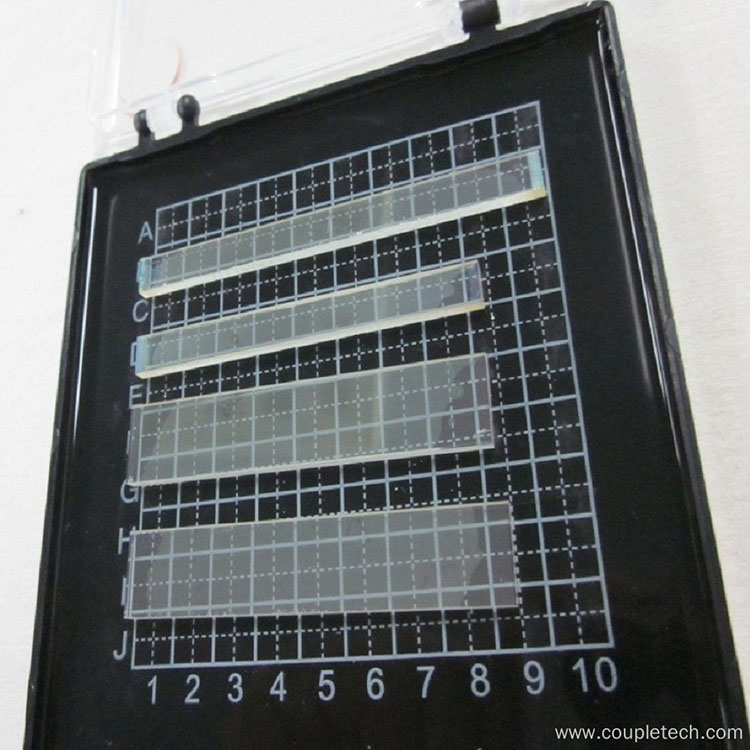

MgO doped Periodically Poled Lithium Niobate Crystals
  • MgO doped Periodically Poled Lithium Niobate CrystalsMgO doped Periodically Poled Lithium Niobate Crystals

MgO doped Periodically Poled Lithium Niobate Crystals

Our MgO doped Periodically Poled Lithium Niobate Crystals products are well received in the market. Coupletech provides PPLN and MgO:PPLN Crystals for SHG at 1064nm and OPO at 1064nm, MgO doped Periodically Poled Lithium Niobate Crystals (MgO:PPLN) OPO is a new type of Nonlinear Optical Crystal. Using electric field poling to fabricate periodic domain structure, it can realize high parametric oscillator from visible light to mid-infrared light by quasi-phase matching (QPM) technique. MgO doped Periodically Poled Lithium Niobate Crystals (MgO:PPLN) has the properties of high optical damage threshold, large photorefractive threshold and stable performance which can be used at room temperature. Comparing with LBO Crystals and KTP Crystals, MgO:PPLN Crystals has many advantages such as high non-linear coefficient, smaller size, shorter manufacturing cycle and easier mass manufacture.

Send Inquiry

Product Description

MgO doped Periodically Poled Lithium Niobate Crystals


Product Attributes


Model No.:
MgO:PPLN-WHL

Brand:

Coupletech
Thickness:
1-2mm
Length:
10-70mm
COATINGS:
AR At 1030-1064nm&1450-1650nm&3000-4000nm
Pervious To Light Range:
360-5000nm
Width:
2-10mm
OPO Single Period:
29.0, 29.5,30.0, 30.5, 31.0, 31.5, 32.0um (customi

Multiple Period:

Customization Multiple Period Crystal Design
Damage Threshold:
500MW/cm2(1064nm,9ns,10Hz)
SHG Single Period:
 6.96um




Supply Ability & Additional Information


Packaging: Carton Packing
Carton Packing
Productivity: 2000 pcs per year
2000 pcs per year
Transportation:
Air
Place of Origin:
China
HS Code:
9001909090
Payment Type:
T/T
Incoterm:
FOB,CIF,FCA
Delivery Time:
30 Days




Packaging & Delivery


Selling Units:Bag/Bags

Package Type:Carton Packing



Coupletech provides PPLN and MgO:PPLN Crystals for SHG at 1064nm and OPO at 1064nm, MgO doped Periodically Poled Lithium Niobate Crystals (MgO:PPLN) OPO is a new type of Nonlinear Optical Crystal. Using electric field poling to fabricate periodic domain structure, it can realize high parametric oscillator from visible light to mid-infrared light by quasi-phase matching (QPM) technique. MgO doped Periodically Poled Lithium Niobate Crystals (MgO:PPLN) has the properties of high optical damage threshold, large photorefractive threshold and stable performance which can be used at room temperature. Comparing with LBO Crystals and KTP Crystals, MgO:PPLN Crystals has many advantages such as high non-linear coefficient, smaller size, shorter manufacturing cycle and easier mass manufacture.

The features are that PPLN Crystals can realize frequency conversion such as SHG, optical parametric oscillator etc. The applications are mid IR laser ranging, SHG, OPO, remote sensing, atmospheric Detecting, Electro-Optic Warfare. MgO-doped Periodically poled Lithium Niobate (MgO:PPLN) is a new nonlinear Optical Crystal for SHG at 1064nm. Using electric field poling to fabricate periodic domain structure, it can realize high efficiency frequency conversion of frequency doubling, sum frequency and optical parametric oscillator from visible light to mid-infrared light by quasi-phase matching (QPM) technique. User by choosing proper period, width, and length, can get required specific frequency conversion.


The features are no walk-off, 5mol% MgO:PPLN with high optical damage threshold, large nonlinear coefficient, high efficiency frequency-doubling crystal, stable performance. Room temperature customization PPLN with single period and multiple period. The applications is intracavity frequency doubling to green light ( 532nm ) ( PPLN length 1mm-2mm ), and single passed frequency doubling to green light (length 10mm).







Looking for ideal MgO-doped Lithium Niobate Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the Periodically Poled Lithium Niobate are quality guaranteed. We are China Origin Factory of Magnesium-oxide-doped PPLN Crystal OPO. If you have any question, please feel free to contact us.
