Narrow Band Filter With Different Wavelengths
  • Narrow Band Filter With Different WavelengthsNarrow Band Filter With Different Wavelengths

Narrow Band Filter With Different Wavelengths

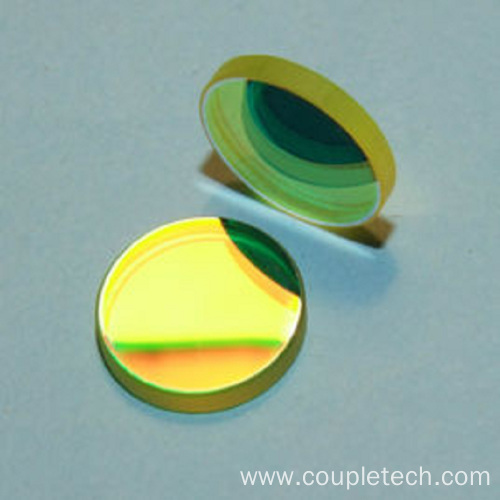

Our Narrow Band Filter With Different Wavelengths is well received in the market. Narrow band filter is a kind of Optical Filters, which can separate out the monochromatic light of a band, allows optical signal through specific waveband, nevertheless the light signals from both sides of the waveband are blocked. The band of narrow bandpass filter is relatively narrow, it is generally less than 5% of the central wavelength.

Send Inquiry

Product Description

Narrow Band Filter With Different Wavelengths


Product Attributes


Brand:
COUPLETECH
Central Wavelength:
A Variety Of Models
Incident Angle:
 0°
Half-peak Bandwidth:
8nm
Peak Transmittance:
>80%(customizable)
Dimensions:
3mm-80mm(customizable)
Material:
Optical Glass (K9,JGS1,etc.)
Surface Quality:
MIL-PRF-13830B 60-40
Cutoff Wavelength:
200nm-1100nm(customizable)
Cutoff Depth:
> Od4-od6 Uv-nir


Supply Ability & Additional Information


Packaging:
Carton packaging
Productivity:
1000PCS per year
Transportation:
Air
Place of Origin:
China
HS Code:
9001909090
Payment Type:
T/T
Incoterm:
FOB,CFR,CIF,FCA,CPT
Delivery Time:
30 Days


Packaging & Delivery


Selling Units:Bag/Bags

Package Type:Carton packaging


Narrow band filter is a kind of Optical Filters, which can separate out the monochromatic light of a band, allows optical signal through specific waveband, nevertheless the light signals from both sides of the waveband are blocked. The band of narrow bandpass filter is relatively narrow, it is generally less than 5% of the central wavelength.
Narrow-band pass filters main function is to make the passage of light of a specific wavelength, let the other wavelengths of the light reflection (or attenuation) of optical components. Half wave width is usually controlled in 20nm or smaller, ultraviolet, visible light, near infrared wavelength, far infrared wave band. My company's narrow band filter using multilayer epidural by ion assisted deposition of nanometer materials and high vacuum evaporation coating, good compactness, high imaging definition. Besides narrow band pass filter, Coupletech also provides all kinds of Optical Elements, Optical Lenses, Optical Windows, Optical Mirrors, Optical prisms.
We also provide 365nm,380nm,394nm,405nm,420nm, 430nm, 440nm, 450nm,465nm, 470nm, 490nm, 520nm, 532nm , 546nm , 550nm,560nm, 570nm, 580nm, 590nm, 600nm, 620nm, 635nm, 648nm,654nm, 660nm, 670nm, 690nm, 720nm, 740nm, 760nm, 780nm, 808nm 810nm, , 830nm, 845nm, 850nm, 860nm, 870nm, 880nm, 905nm, 940nm, 980nm, 1000nm,1050nm, 1064nm, 1080nm narrow band filter.


Looking for ideal Narrow Band Pass Filter Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the Narrow Bandpass Filter are quality guaranteed. We are China Origin Factory of Narrow-band Pass Filter. If you have any question, please feel free to contact us.
