PCD02 POCKELS CELLS DRIVER

Our PCD02 POCKELS CELLS DRIVER products are popular in the market. Generation of high voltage pulses for the control of electro-optical Q-switches (Pockels cells) in aSolid-state laser. Fast HV (less than 10 ns) edge ensures excellent pre-and post-pulse contrast.

Send Inquiry

Product Description

PCD02 POCKELS CELLS DRIVER


Product Attributes


Model No.: PCD02

Brand: Coupletech


Supply Ability & Additional Information


Packaging:
Carton Packing
Productivity:
China
Transportation:
Ocean,Land,Air
Place of Origin:
Jinan
Supply Ability:
1000pcs
HS Code:
9013901000



Packaging & Delivery


Selling Units:Bag/Bags

Package Type:Carton Packing



Application:


Generation of high voltage pulses for the control of electro-optical Q-switches (Pockels cells) in aSolid-state laser. Fast HV (less than 10 ns) edge ensures excellent pre-and post-pulse contrast.


Features:

● Fast HV rise/fall time:<10 ns


● HV pulse amplitude: up to 4.0 kV

● Pulse repetition rate: up to 1000Hz

●Jitter, System Input to Output: <1.8ns

● TTL (CMOS) input signal required (3.3/5V, opto-isolated)

● Built-in High-Voltage source

● HV Voltage Control: "HV PROGRAM" potentiometer or analog input.


Specifications:

HV pulse amplitude

1.0~4.0

kV


Rise /Fall time

≤10

ns

Load capacitance:10PF

HV pulse jitter

≤1.8

ns


Recovery time

≤50

µs


Voltage supply

12

VDC

12±0.5 V, <150 mA

HV pulse repetition rate

0~2000

Hz


External triggering pulse amplitude requirement

3.3–5 V

V

opto-isolated

HV pulse delay

70~90

ns


Dimensions

60*35*20

mm


Operating temperature

-30~60



Outline drawing of PCD02:



PIN

DESIGNATION

DESCRIPTION

1

EN+

The high voltage output is enabled by PIN1PIN2

([1" – disable, [0" – enable)

2

EN-

9

+12V

Input Power Supply

10

GND

Return from power supply

11

SG+

Step from [0" or "1" on PIN11 PIN12 forms QSwitched pulse on Pockels Cell

12

SG-

13

NC


14

+HVPULSE

Q-switch electrode:HV PULSE OUTPUT

15

NC


16

GND

Q-switch electrode:GND

3

HV PROGRAM 1


HV Voltage Control:

[HV PROGRAM" potentiometer

4

HV PROGRAM 2

5

HV PROGRAM 3

6

NC


7

NC


8

NC


l [0" means logical 0 low level (0V), [1" means logical 1 high level (3.3/5V)

l [NC"means No Connection


ELECTRIC BLOCK-DIAGRAM:

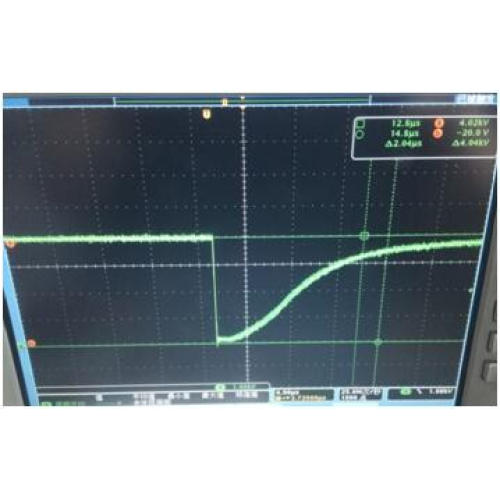

Typical output:



Demo Board of PCD02:
