Home > Products > Laser Component > Optical Element > Sapphire Al2O3 Laser Crystal Windows

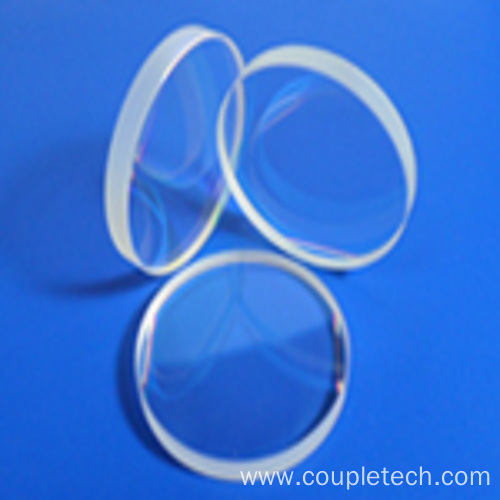

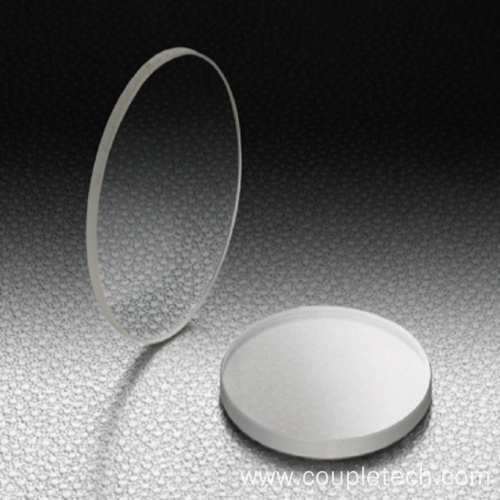

Sapphire Al2O3 Laser Crystal Windows
  • Sapphire Al2O3 Laser Crystal WindowsSapphire Al2O3 Laser Crystal Windows
  • Sapphire Al2O3 Laser Crystal WindowsSapphire Al2O3 Laser Crystal Windows

Sapphire Al2O3 Laser Crystal Windows

Our Sapphire Al2O3 Laser Crystal Windows products are your best choice! As a kind of Optical Element, Sapphire is a single crystal form of Al2O3, with a favorable combination of chemical, mechanical and optical properties. Sapphire crystal is resistant to attack by strong acids, enabling use in a corrosive atmosphere. It is resistant to scratch and abrasion with very high Knoop hardness of 1800 parallel to the optic axis (C-axis), 2200 perpendicular to the optic axis.

Send Inquiry

Product Description

Sapphire Al2O3 Laser Crystal Windows


Product Attributes


Brand:
COUPLETECH
Surface Quality:
40/20
Clear Aperture:
>90%
Surface Roughness:
Rz 0.012
Parallelism:
<3'
Diameter Tolerance:
+0.0/-0.1mm
THICKNESS TOLERANCE:
±0.1mm
Bevelling:
<0.2×45°
Coating:
Custom Design
Materia:
Sapphire
Surface Accuracy:
λ/[email protected]






Supply Ability & Additional Information


Packaging:
Carton Packing
Productivity:
1000pcs per year
Transportation:
Air
Place of Origin:
CHINA
HS Code:
9001909090
Payment Type:
T/T
Incoterm:
FOB,CIF,FCA,CPT
Delivery Time:
30 Days





Packaging & Delivery


Selling Units:Bag/Bags

Package Type:Carton Packing



As a kind of Optical Element, Sapphire is a single crystal form of Al2O3, with a favorable combination of chemical, mechanical and optical properties.

Sapphire crystal is resistant to attack by strong acids, enabling use in a corrosive atmosphere. It is resistant to scratch and abrasion with very high Knoop hardness of 1800 parallel to the optic axis (C-axis), 2200 perpendicular to the optic axis.

Uncoated Sapphire Optical Windows are ideal for harsh conditions, including environments subject to high temperatures, high pressures, strong vacuum, or corrosive atmospheres.

Sapphire has high compressive strength and is resistant to attack from strong acid.

Coupletech provides Sapphire Al2O3 is one of the hardest materials, and possesses very good transmission during the range of visible and near IR spectrum.

Advantage of Sapphire as below:

Ideal for high temperature, high pressure, or strong vacuum environments;

Highly corrosion resistant;

Transparent from 170 nm to 5.5 μm;

Extremely hard and more durable than standard optical glass.




Al2O3 is widely used as optical window in infrared and far infrared military equipments, apparatus and instruments of satellite and space technology, and navigation and spaceflight, such as night infrared scope/sight and night vision camera, etc. The sapphire windows are intensively applied in high-tech fields.

Coupletech also provides other kinds of optical element such as : Optical Lenses, Optical Filters, Beamsplitter, Optical Mirrors, and optical prism.


Looking for ideal Al2O3 Laser Crystal Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the Sapphire Al2O3 Laser Crystal are quality guaranteed. We are China Origin Factory of Sapphire Al2O3 Laser Windows. If you have any question, please feel free to contact us.
