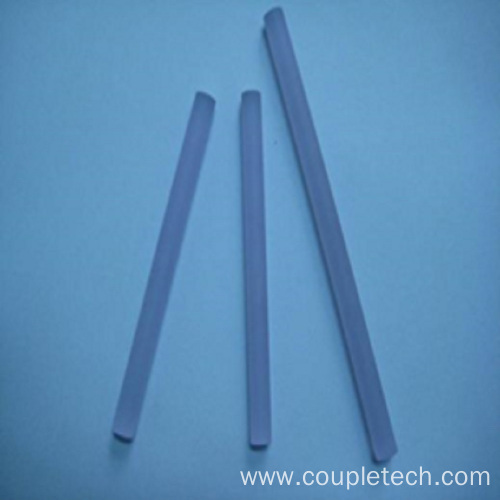

Neodymium-doped Yttrium Lithium Fluoride Nd:YLF Crystal
  • Neodymium-doped Yttrium Lithium Fluoride Nd:YLF CrystalNeodymium-doped Yttrium Lithium Fluoride Nd:YLF Crystal

Neodymium-doped Yttrium Lithium Fluoride Nd:YLF Crystal

We are experts in the field of Neodymium-doped Yttrium Lithium Fluoride Nd:YLF Crystal. Neodymium-doped Yttrium Lithium Fluoride Nd:YLF Crystal offers an alternative to the more common YAG host for near IR operation, Nd:YLF Nd: LiY1.0-XF4 Laser Crystal is similar to Nd:YAG Crystals. The combination of weak thermal lensing (19 times lower than that of YAG), large fluorescence line width and naturally polarized oscillation makes Nd:YLF an excellent material for CW mode locked operation. 1053 nm output of Nd:YLF Laser crystal rod matches gain curves of Nd:Glass laser and performs well as an oscillator and pre-amplifier, the output wavelength covers 1053nm, 1047nm, 1313nm, 1324nm and 1370 nm. Coupletech Co., Ltd. manufactures, develops and markets a variety of Optical Crystal and Laser Component which are widely used in the field of optoelectronics.

Send Inquiry

Product Description

Neodymium-doped Yttrium Lithium Fluoride Nd:YLF Crystal



Product Attributes


Model No.:
NdYLF-WHL
Brand:
Coupletech

Damage Threshold:

800MW/cm2 10ns 10Hz 1064nm

Aperture:

2-10mm
Length:
1-150mm
COATINGS:
S1,S2: AR Coatings At 1047-1053nm
Orientation:
NdYLF 100 001



Supply Ability & Additional Information


Packaging:
Carton Packing
Productivity:
2000 pcs per year
Transportation:
Air
Place of Origin:
China
HS Code:
 9001909090
Payment Type:
T/T
Incoterm:
 FOB,CIF,FCA
Delivery Time:
30 Days



Packaging & Delivery


Selling Units:Bag/Bags

Package Type:Carton Packing





Neodymium-doped Yttrium Lithium Fluoride Nd:YLF Crystal offers an alternative to the more common YAG host for near IR operation, Nd:YLF Nd: LiY1.0-XF4 Laser Crystal is similar to Nd:YAG Crystals. The combination of weak thermal lensing (19 times lower than that of YAG), large fluorescence line width and naturally polarized oscillation makes Nd:YLF an excellent material for CW mode locked operation. 1053 nm output of Nd:YLF Laser crystal rod matches gain curves of Nd:Glass laser and performs well as an oscillator and pre-amplifier, the output wavelength covers 1053nm, 1047nm, 1313nm, 1324nm and 1370 nm. Coupletech Co., Ltd. manufactures, develops and markets a variety of Optical Crystal and Laser Component which are widely used in the field of optoelectronics.


Laser Crystal Nd:YLF crystal is grown utilizing the modified Czochralsky technique. The as-grown crystals are then processed into laser rods or slabs, coated in house, and inspected according to customer specifications. Long crystals for lamp pumping with concentration to 1.1 atom % and short elements for diode pumping with concentration to 1.5 atom % can be grown. The use of high quality starting NdYLF Laser material for crystal growth, whole boule interferometry, and precise inspection of scattering particle in crystal using He-Ne lsaer assures that each crystal will perform well.




Looking for ideal NdYLF Laser Material Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the LiY1-XNdXF4 Laser Crystal are quality guaranteed. We are China Origin Factory of NdYLF Laser Crystal Rod. If you have any question, please feel free to contact us.
