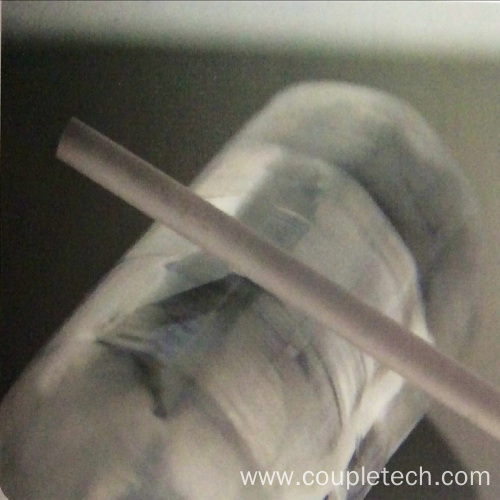

Ytterbium Doped YAG Crystal
  • Ytterbium Doped YAG CrystalYtterbium Doped YAG Crystal

Ytterbium Doped YAG Crystal

We have many years of experience in the production of Ytterbium Doped YAG Crystal. Ytterbium Doped Yttrium Aluminum Garnet (Yb:YAG Crystal) is one of the most promising laser-active materials and more suitable for diode-pumping than the traditional Nd- doped systems. It can be pumped at 0.94um laser, and it is output 1030nm Laser Crystal. Compared with the commonly used Nd:YAG crystal. Yb:YAG (Ytterbium Doped Yttrium Aluminum Garne ) crystal has a much larger absorption bandwidth to reduce thermal management requirements for diode lasers, a longer upper-state level lifetime, three to four times lower thermal loading per unit pump power. Yb:YAG ( Ytterbium Doped Yttrium Aluminum Garne Crystal) shows great promise as a high power laser material and several applications are being developed in the field of industrial lasers, such as metal cutting and welding.

Send Inquiry

Product Description

Ytterbium Doped YAG Crystal



Product Attributes


Brand:
COUPLETECH
Chemical Formula:  Yb3+:Y3Al5O12
Laser Wavelength:
1030nm
Fluorescence Lifetime:
1.2ms
Melting Point:
1970°C
Reflective Index:
 1.82
Thermal Expansion Coefficient:
7.8x10-6 /K <111>
Thermal Conductivity (W/m/K):
14, 20°C 10.5, 100°C
Density:
4.56 G/cm3;
Parallelism:
<10 Arc Sec



Supply Ability & Additional Information


Packaging:
Carton Packing
Productivity:
1000pcs per year
Transportation:
Air
Place of Origin:
CHINA
HS Code:
9001909090
Payment Type:
T/T
Incoterm:
FOB,CIF,FCA
Delivery Time:
30 Days


Packaging & Delivery


Selling Units:Bag/Bags
Package Type:Carton Packing




Ytterbium Doped Yttrium Aluminum Garnet (Yb:YAG Crystal) is one of the most promising laser-active materials and more suitable for diode-pumping than the traditional Nd- doped systems. It can be pumped at 0.94um laser, and it is output 1030nm Laser Crystal. Compared with the commonly used Nd:YAG crystal. Yb:YAG (Ytterbium Doped Yttrium Aluminum Garne ) crystal has a much larger absorption bandwidth to reduce thermal management requirements for diode lasers, a longer upper-state level lifetime, three to four times lower thermal loading per unit pump power. Yb:YAG ( Ytterbium Doped Yttrium Aluminum Garne Crystal) shows great promise as a high power laser material and several applications are being developed in the field of industrial lasers, such as metal cutting and welding.

Coupletech provide the Advantages of Yb:YAG Crystal with very low fractional heating less than 11%; Very high slope efficiency; Broad absorption bands, about 8nm@940nm; No excited-state absorption or up-conversion; Conveniently pumped by reliable InGaAs diodes at 940nm(or 970nm); High thermal conductivity and large mechanical strength; High optical quality. The Applications of Yb:YAG are with a wide pump band and excellent emission cross-section Yb:YAG is an ideal crystal for diode pumping; High Output Power; Laser Material for Diode Pumping; Materials Processing, Welding and Cutting.


The specifications of Yb:YAG are as below:

wavelength is 1030nm;

chemical formula is Y3Al5O12:Yb;

orientation within 5 degree;

parallelism is ≤ 10";

perpendicularity is ≤ 5′;

flatness is 0.1 wave maxismum;

surface quality at 5X is 20-10.



You can customise the Yb:YAG crystal to your needs. If you do not find suitable specifications for your application please contact us for custom solution. Coupletech provide many kinds of laser crystals such as : Nd:YVO4 Crystals, Cr:YAG Crystals and Diffusion Bonded Crystals. Coupletech also provide Laser Component, Pockels Cell Driver, Optical Element and Polarization Optics.


Looking for ideal Yb:YAG Laser Crystal Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the Ytterbium Doped Yttrium Aluminum Garnet Crystal are quality guaranteed. We are China Origin Factory of 1030nm Laser Crystal. If you have any question, please feel free to contact us.
