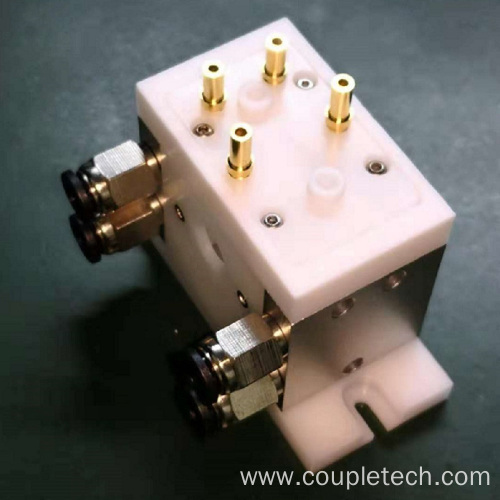

H-KTP Pockels Cell With Water Cooling
  • H-KTP Pockels Cell With Water CoolingH-KTP Pockels Cell With Water Cooling

H-KTP Pockels Cell With Water Cooling

We have many years of experience in the production of H-KTP Pockels Cell With Water Cooling. H-KTP crystal is grown by hydrothermal method, which overcomes the "Gray Track" phenomenon, the most common defect of common fused salt KTP crystal. It has the ability of high anti-laser damage threshold and high anti-gray mark, and can be steadily applied to the laser system with high power, high repetition frequency and high conversion efficiency for a long time. H-KTP crystal has a good electro-optical effect and can be used for EO Q-switch and EO modulation switches. H-KTP Pockels Cell with Water-cooling structure can be applied to higher power up to 300W.

Send Inquiry

Product Description

H-KTP Pockels Cell With Water Cooling


Product Attributes


Model No.:

CPKPC-04-W

Brand:

Coupletech
Maximum Average Energy Density:
4kW/cm2 @532nm
Wavefront Distortion:
<λ/8 @633nm
Aperture:
3.6mm
Flatness:
<λ/8 @633nm
Surface Quality:
10/5
Parallelism:
20 Arc Sec.
COATINGS:
AR/[email protected]&532nm
Perpendicularity:
5 Arc Min.
Antireflection Damage Threshold: )
>500MW/cm2 (@1064nm,TEM00,10ns,10Hz




Supply Ability & Additional Information


Packaging:
Carton Packing
Productivity:
2000pcs
Transportation:
Land,Air
Place of Origin:
China
Certificate:
ISO9001:2015
HS Code:
9001909090
Payment Type:
T/T
Incoterm:
FOB,CIF,FCA,CIP
Delivery Time:
30 Days




Packaging & Delivery


Selling Units:Bag/BagsPackage Type:Carton Packing


H-KTP crystal is grown by hydrothermal method, which overcomes the "Gray Track" phenomenon, the most common defect of common fused salt KTP crystal. It has the ability of high anti-laser damage threshold and high anti-gray mark, and can be steadily applied to the laser system with high power, high repetition frequency and high conversion efficiency for a long time. H-KTP crystal has a good electro-optical effect and can be used for EO Q-switch and EO modulation switches. H-KTP Pockels Cell with Water-cooling structure can be applied to higher power up to 300W.


The high damage threshold of H-KTP pockels cell with water-cooling is up to 450mw/cm2(at 1064nm TEM00 10 ns,10 hz), Maximum average energy density is 4kW/cm2 at 532nm, besides, the high conversion effciency is up to 80%(depending on crystal device size and laser system) and the low conductivity is 10-10/Ωcm. It is the single domain structure and the low absorption rate is <2000ppm/cm at 532mm, <150ppm/cm at 1064mm.


H-KTP crystal has been widely used in laser frequency doubling, electro-optical modulation and electro-optical Q switching,optical parametric oscillation amplification, quasi- phase matching and other fields. H-KTP Crystal EO Cells has the advantages of low insertion loss, low half-wave voltage, not deliquescence, wide light transmission band, no piezoelectric ringing effect and wide automatic temperature compensation. It can be used for up to 100W quasi-continuous laser output, it is customized for water-cooling H-KTP EO Q-switch according to your requiry. If you wish to find more suitable productions for your application please contact with us. Coupletech provides many kinds of EO Q-Switches. In the time, Coupletech also provides Laser Component, Pockels Cell Driver, Optical Element and Polarization Optics.



Looking for ideal H-KTP Crystal EO Cells Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the Pockels Cell with Water-Cooling Structure are quality guaranteed. We are China Origin Factory of H-KTP Pockels Cell. If you have any question, please feel free to contact us.
